Uneven layouts

Real figures are lopsided. One wide trend across the top, three small panels beneath it; a big chart with a strip of context down the side. An even grid can't express that, because every cell is the same size.

subplot_mosaic

The modern answer, and it's a good one — you draw the layout:

fig, axd = plt.subplot_mosaic(
    """
    AAA
    BCD
    """,
    figsize=(9, 5),
    layout="constrained",
)

axd["A"].plot(when, cups)
axd["B"].barh(items, sold)

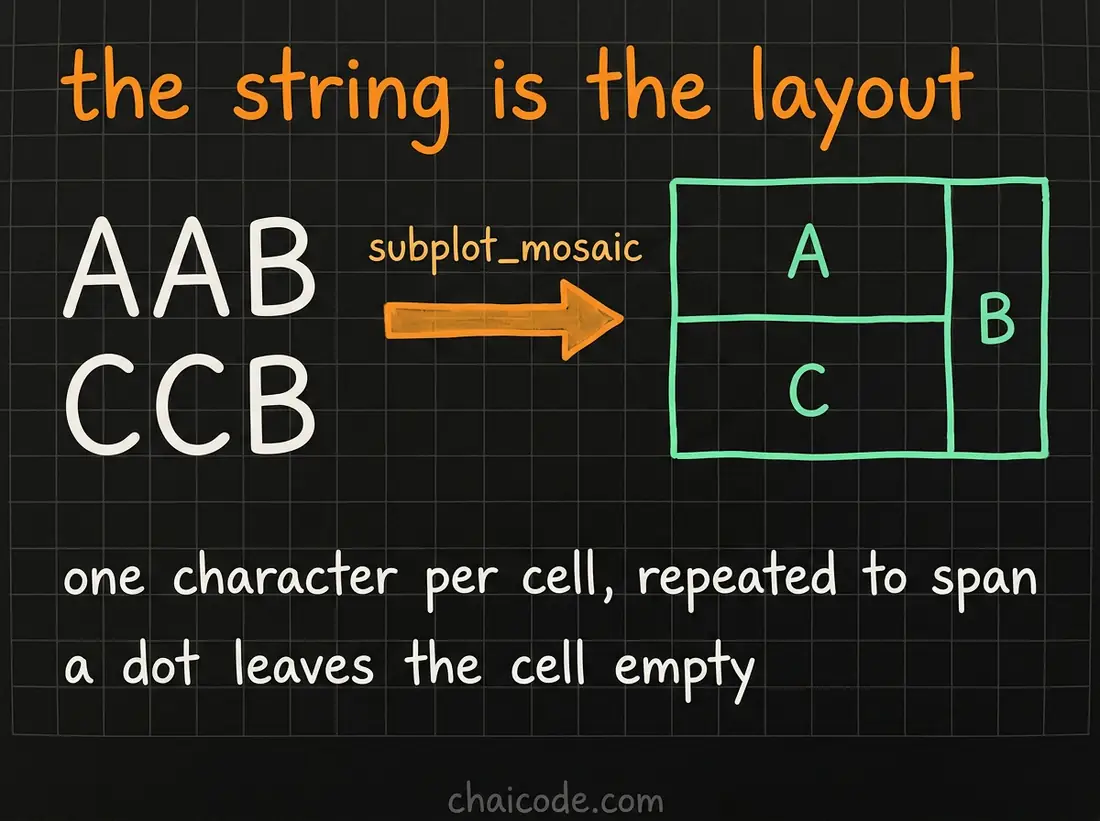

Repeat a name and that panel spans the cells you repeated it across. Two things follow, and both matter more than they sound:

The source looks like the figure. Anyone reading the code knows the arrangement without running it, which is not true of a page of add_subplot(gs[0, :2]).

You get a dict, keyed by your names. axd["A"], not axes[0, 1]. Insert a panel later and nothing renumbers — every existing reference keeps working.

One character per cell

Here's the catch, and it will bite you within about ten minutes. In the string form, every cell is a single character. matplotlib reads the string character-by-character, so this:

plt.subplot_mosaic("""
    trend trend
    items wait
""")

does not make two named panels. It tries to make an 11-column grid out of the letters of t, r, e, n, d… and raises ValueError: All of the rows must be the same length, which is a very confusing message if you thought you were writing words.

For readable names, pass nested lists — and this is the form worth defaulting to:

fig, axd = plt.subplot_mosaic([
    ["trend", "trend", "trend"],
    ["items", "wait",  "temp" ],
])

axd["trend"].plot(when, cups)

So: single letters for a quick sketch, nested lists for anything you'll keep. The letters are faster to type; the names are what makes the drawing code readable, which was the point of using mosaic in the first place.

Blanks

plt.subplot_mosaic("""
    AAB
    C.B
""")

plt.subplot_mosaic([["trend", "trend"],
                    ["items", "."     ]])

A "." leaves the cell empty — room for a figure-level legend, or a deliberately ragged shape. It never appears in the returned dict, and it's visible in the source, which a deleted Axes isn't.

GridSpec

Mosaic is built on GridSpec, and you drop down to it when the cells shouldn't be equal:

fig = plt.figure(figsize=(9, 5), layout="constrained")
gs = fig.add_gridspec(2, 3, width_ratios=[2, 1, 1], height_ratios=[1, 2])

top   = fig.add_subplot(gs[0, :])     # the whole top row
left  = fig.add_subplot(gs[1, 0])
mid   = fig.add_subplot(gs[1, 1])

gs slices like an array, so gs[0, :] is the top row and gs[:, 0] the left column. width_ratios=[2, 1, 1] makes the first column twice as wide as the others. GridSpec also nests — gs[1, 0].subgridspec(2, 1) — for the rare figure that needs it.

Mosaic accepts the same ratios, so you often don't need to drop down at all: subplot_mosaic(..., width_ratios=[2, 1, 1]).

Exact placement

inset = fig.add_axes([0.62, 0.62, 0.25, 0.22])   # [left, bottom, w, h]

Fractions of the figure, ignoring every grid. This is how you put an inset zoom in a corner or place a colourbar exactly. It's also outside the layout engine's control, so it won't be moved out of the way of anything — use it deliberately, not as a default.

(There's also ax.inset_axes([...]), which positions relative to a parent Axes rather than the figure — usually what you actually want for a zoom.)

Which to reach for

• subplots — an even grid. Still the common case.
• subplot_mosaic — anything lopsided. The right default now.
• GridSpec — explicit ratios or nesting.
• add_axes / inset_axes — insets and colourbars, placed by hand.

All four build the same kind of Axes. They differ only in how you describe where it goes.
