Charts you can reuse

Every analysis notebook eventually contains the same twelve lines of chart code, pasted six times with small differences — and the differences are where the bugs live. One of them still says "Delhi" in the title.

The convention

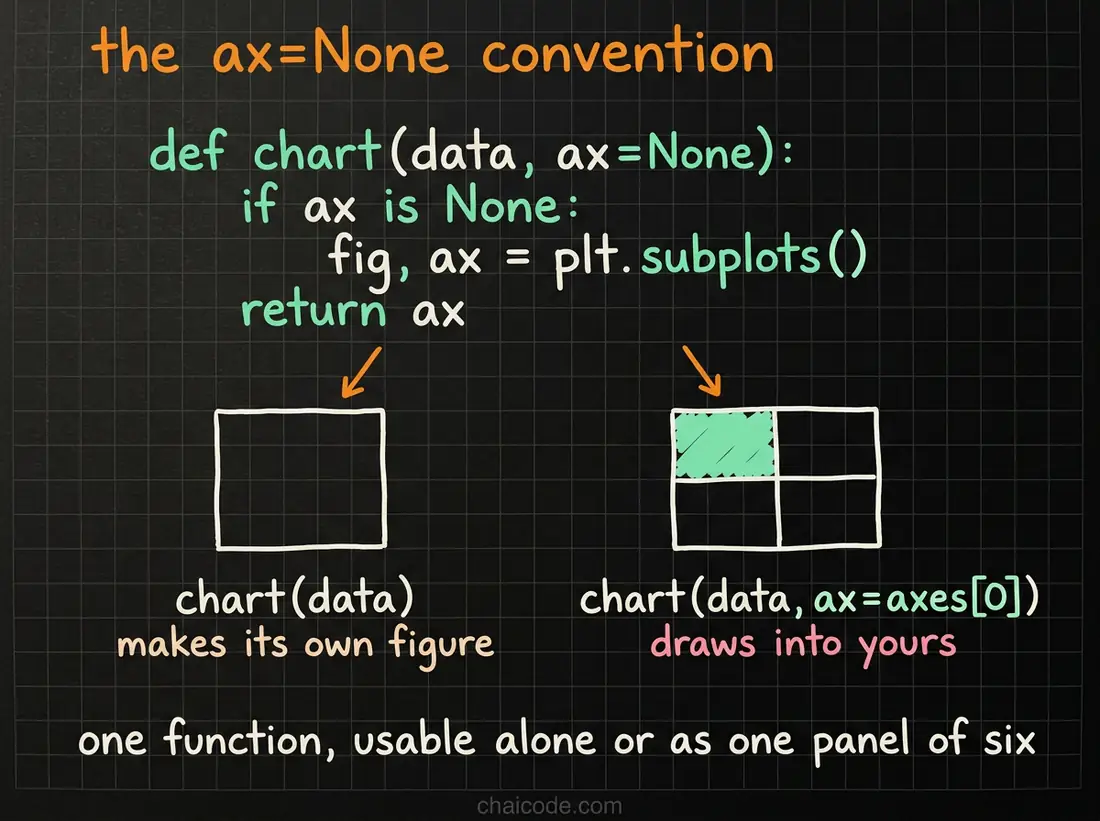

matplotlib's own gallery uses a pattern that almost no tutorial mentions, and it is the whole answer:

def trend(values, label, ax=None, **kwargs):
    if ax is None:
        ax = plt.gca()

    ax.plot(days, values, label=label, **kwargs)
    ax.set_ylabel("cups")
    ax.set_title(label, loc="left")
    return ax

Four rules, and each one is load-bearing:

• Take an ax. The caller decides where the chart goes.
• Default it to plt.gca(). So it still works as a one-liner when nobody cares.
• Return it. So the caller can keep customising afterwards.
• Never call plt.figure(), show() or savefig() inside. Those are the caller's decisions, and a function that makes them for you composes with nothing.

Why it composes

trend(delhi, "Delhi")                          # standalone — gca() makes one

fig, axd = plt.subplot_mosaic([["a", "b"]])
trend(delhi, "Delhi", ax=axd["a"])              # into a layout

fig, axes = plt.subplots(2, 3, sharey=True, layout="constrained")
for ax, item in zip(axes.flat, items):          # once per group
    trend(orders[orders["item"] == item]["cups"], item, ax=ax)

Same function, three quite different figures, no branching inside it. That is the entire return on those three extra lines.

**kwargs forwarded to the plotting call keeps it flexible without you having to predict every option — trend(delhi, "Delhi", color="C1", linestyle="--") just works.

Size for where it is going

A figure isn't "right" in the abstract; it's right for a destination. The same chart needs genuinely different settings for a slide and for a paper:

# a slide      figsize=(10, 5.6), font.size=14   big text, few elements, PNG 150dpi
# a paper      figsize=(3.5, 2.6), font.size=8   one column wide, PDF or SVG
# a README     figsize=(8, 4),   font.size=11    PNG — and check it on a phone
# a dashboard  figsize=(6, 3),   font.size=10    SVG, scales with the page

The counter-intuitive one is the paper figure. It's small, so it needs fewer elements and relatively larger text — the instinct to shrink the font to fit more in is exactly backwards. Whatever the destination, look at the exported file at its real size, not the notebook preview.

A save helper

SIZES = {"slide": (10, 5.6), "paper": (3.5, 2.6), "web": (8, 4)}

def save(fig, name, dest="web"):
    fig.set_size_inches(*SIZES[dest])
    fig.savefig(f"out/{name}-{dest}.png", dpi=150, bbox_inches="tight")

fig.set_size_inches resizes after the fact, so one figure can be exported for several destinations without rebuilding it.

Generating a report

for item in items:
    with plt.style.context("chai.mplstyle"):
        fig, ax = plt.subplots(layout="constrained")
        trend(orders[orders["item"] == item]["cups"], item, ax=ax)
        save(fig, item, "slide")
        plt.close(fig)

plt.close(fig) is not optional in a loop. pyplot keeps every figure you create in a global registry; twenty charts is twenty figures held in memory, and matplotlib warns you at twenty. Close as you go.

The habit worth keeping

When you catch yourself editing a chart for the third time, stop and make it a function. Every chart in the report then looks the same, every change is made once, and re-running it after the data updates costs nothing — which is what makes it worth improving at all.
